Thermal Conduction Products > Thermal Grease

Thermal Grease Thermal Pad

Grade	DT-201	DT-301	DT-401
Appearance	White	Gray	Gray
Density(g/cm3)	2.21	2.22	2.27
Thermal conductivity(W/mK)	1.2	4.6	7.8
Thermal Resistance(°C in2/W),1 mil in thickness	0.033	0.0086	0.0050
Electrical Resistivity (Ω cm)	4 X 1015	2 X 1013	5 X 1012
Dielectric Constant, 1 kHz	5.1	34.4	42.2
Dielectric Loss Tangent, 1 kHz	0.005	0.04	0.07
Viscosity (Pa·s), 10 s-1 and 25°C	410	350	480
Evaporation (%), 120°C, 24 hours	< 0.1	< 0.1	< 0.1
Bleed (%),120°C, 24 hours	Nil	Nil	Nil
Maximum Continuous Operating Temperature (°C)	150	150	150
Shelf Life (year), Room Temperature	2	2	2

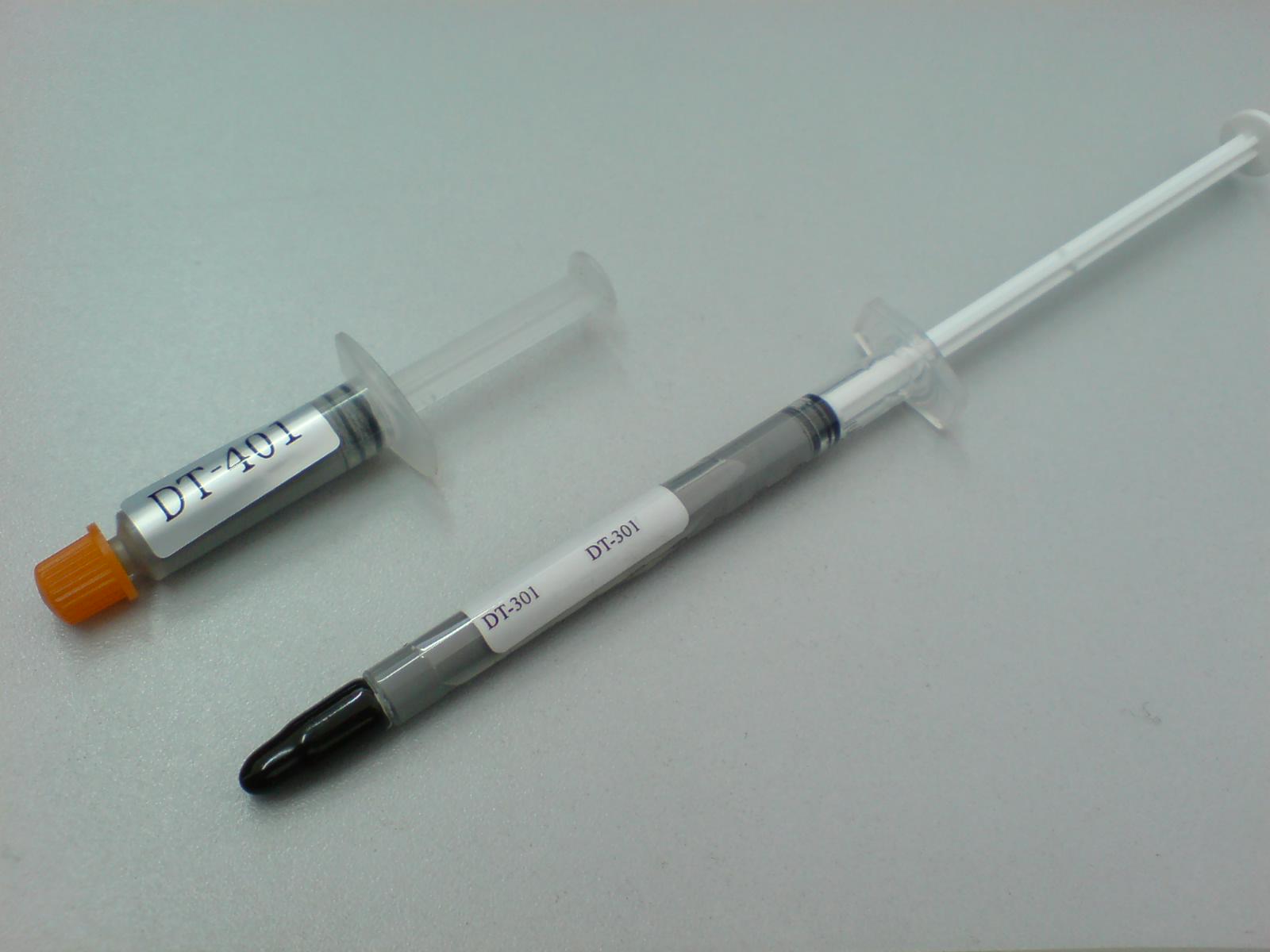

Thermal Grease
